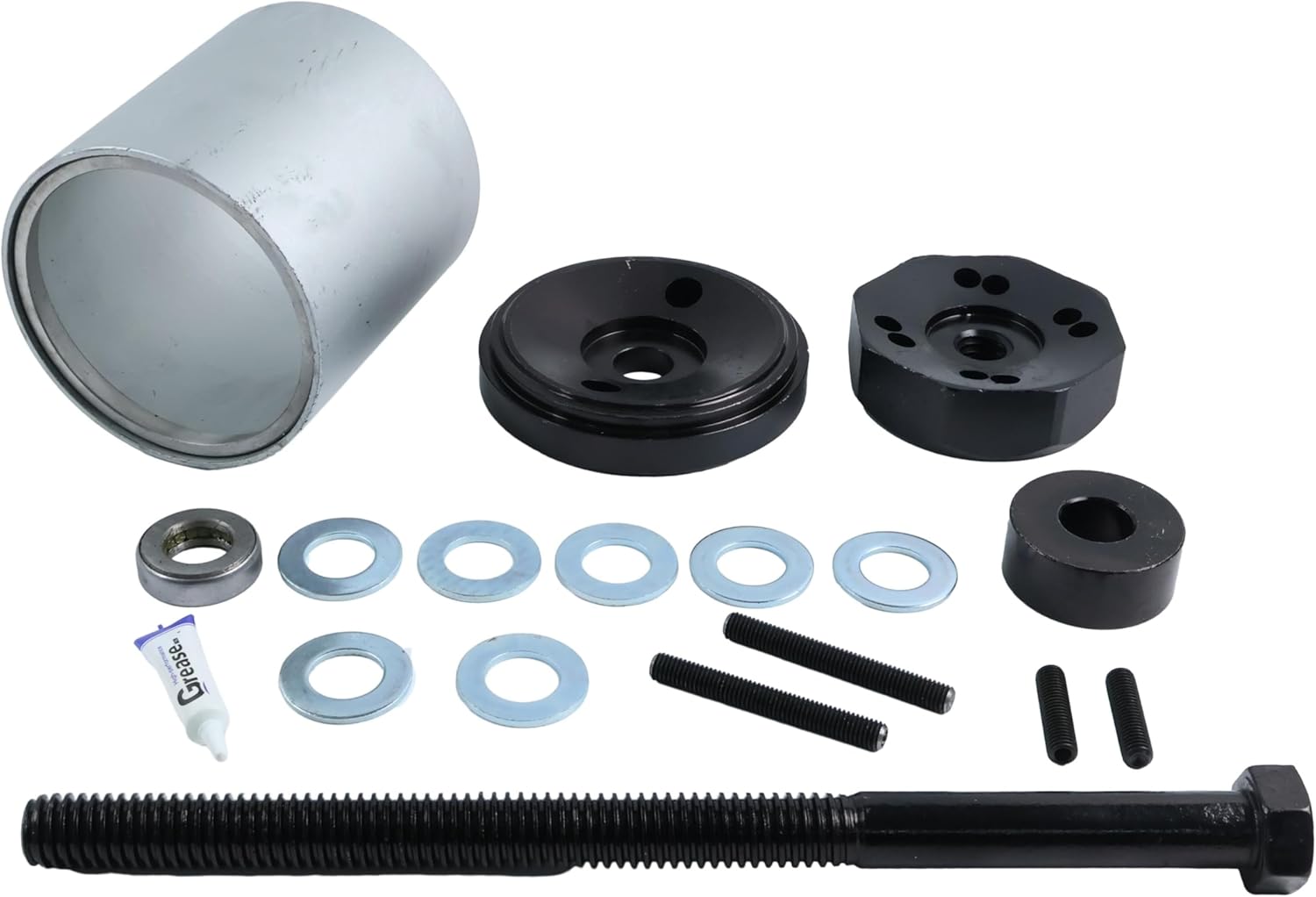

Bushing Installation Tool Compatible with Hendrickson S21307 for Turner Intraax Wide Bushing Complete Kit Bushings Tool

Cross Reference Number:Replace for BWP HE9AA-TReplace for Dayton 334-936Replace forEuclid E-9575Replace forHendrickson S-21307Replace forMeritor R309575Replace forSirco SH2034Replace foriger Tool 15040Applications:Compatible with Automann TS TRB5912Compatible with Dayton TS 334-1576Compatible with Euclid TS E-10729ACompatible with Flagg TS HT245Compatible with Gaff TS 13628Compatible with Hendrickson TS S-24691Removal of Bushing:1. Draw the direction of the lining on the crossbeam tube and compression tube. When disassembling, the spring pin does not need to align with the bushing hole.3. Tighten the fixing nut to eliminate looseness. Tighten the hammer adapter to prevent the liner from getting stuck. Connect the hydraulic system and start the disassembly operation.4. After completing a 2-inch stroke, tighten the nut again to eliminate looseness. (Most bushings need to be adjusted 3-4 times)Installation of Bushing:1. Lubricate the liner and insert it into the compression cylinder.2. Place the plunger on the liner and align the mark on the liner with the mark on the plunger. When installing the liner, the four pins corresponding to the type of liner should be inserted into the liner.3. Tighten the fixing nut to eliminate looseness. Tighten the hammer adapter to prevent the liner from getting stuck. Confirm that the markings on the plunger and crossbeam tube are aligned, and that the pin is still engaged in the bushing.4. After completing a 2-inch stroke, tighten the nut again to eliminate looseness. Before and during use, ensure that the threads on the tool are well lubricated to prevent damage to the threads.

• 【Part number】Replace for S21307 E9575 TRB5912-T
• 【Application】Bushings Tool Compatible with Hendrickson, Hendrickson Turner, Watson Chalin, and Automann
• 【Function】This kit is used in conjunction with the Hendrickson three function wide beam liner kit. This kit allows for easy removal and installation of Hendrickson Intraax three function bushings, while the suspension remains on the trailer.
• 【Quality】It is a replacement part with reliable and tested quality
• 【Service】If you have any questions, please feel free to contact us
• 【Note】To avoid damaging the threads, lubricating grease must be applied to the tool threads before and during use
