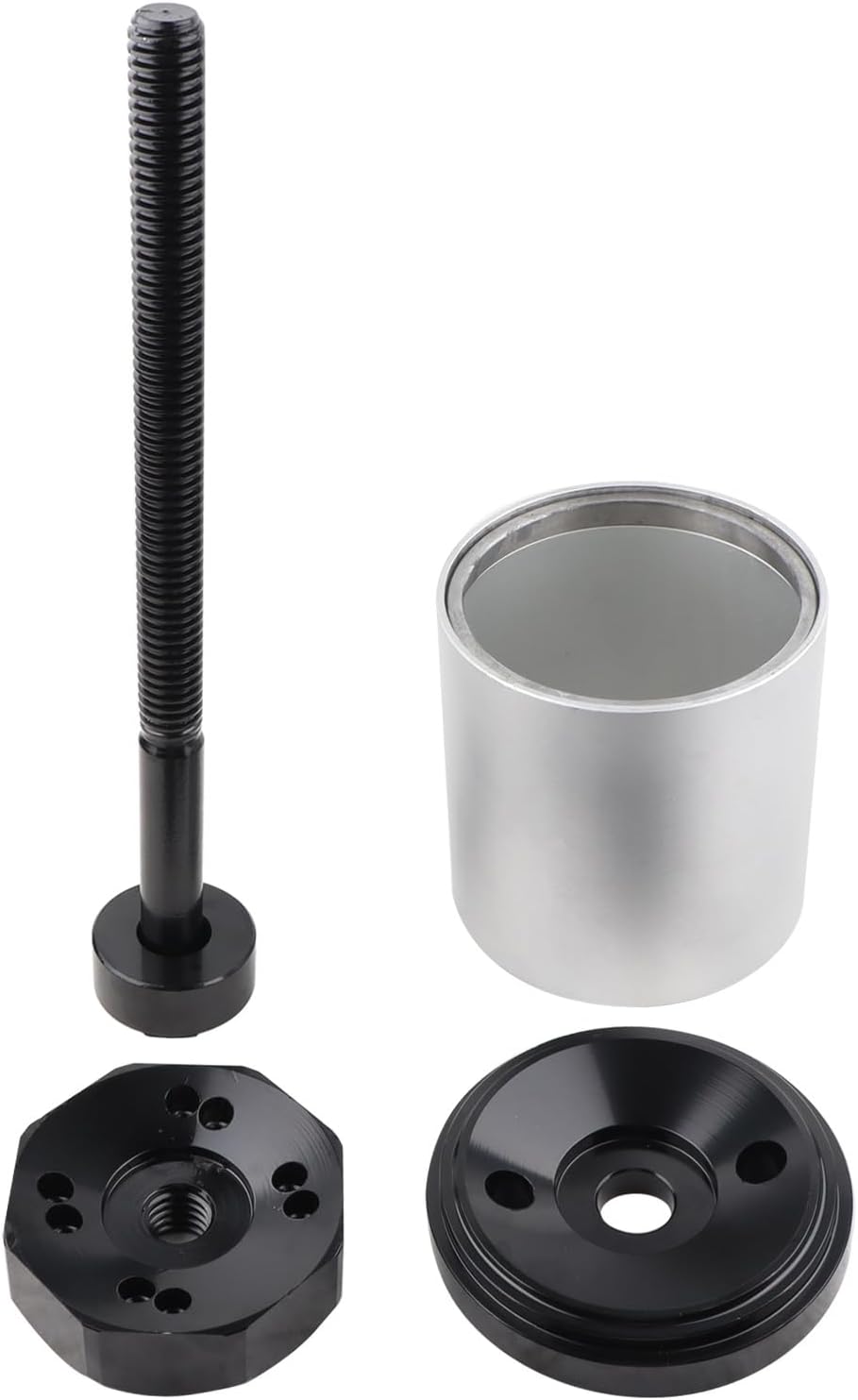

Bushing Installation Tool Compatible with Hendrickson S21307 Turner Intraax Wide Bushing Complete Kit TS21307

Removal of Bushing：1.Scribe the bushing orientation on the beam tube and compression tube.2.The spring pins are not required to line up with the bushing holes during removal.3.Tighten retaining nuts to remove slack. Thread on hammer adapter in the event the bushing becomes seized. Hook up hydraulics and begin removal operation.4.After each 2 inch stroke, re-tighten nuts to take up slack. (Most bushing will require 3-4 adjustments)Installation of Bushing：1.Lubricate the bushing and insert the bushing into compression cylinder.2.Place the plunger on top of the bushing, align the mark on the bushing with the mark on the plunger. The 4 corresponding pins to the bushing type you are installing should seat into the bushing.3.Tighten retaining nuts to remove slack. Thread on hammer adapter in the event the bushing becomes seized. Confirm the plunger is aligned with the scribed mark on the beam tube and the pins are still engaged in the bushing.Hook up hydraulics and begin installation operation.4.After each 2 inch stroke, retighten nuts to take up slack. (Most bushing will require 3-4 adjustments).Ensure that threads on tool are well lubricated before and during use to avoid damaging threads.5.If you have any further installation issues, please Please let us know.Cross References:BWP HE9AA-TDayton 334-936Euclid E-9575Hendrickson S-21307Meritor R309575Sirco SH203415040Applications:Automann TS TRB5912Dayton TS 334-1576Euclid TS E-10729AFlagg TS HT245Gaff TS 13628Hendrickson TS S-24691

• Part Number:S21307, S-21307; TRB5912-T Automann, HE9AA-T, 334-936, E-9575, R309575, SH2034, 15040
• This kit will easily remove and install the Hendrickson Intraax Tri-Functional bushing while the suspension remains on the trailer
• This wide beam bushing is a perfect replacement for the original part, requiring no complex tools. It's easy to use and replaces old or damaged bushings. It can be easily removed and installed
• Our bushing installation tool is made of high-quality metal materials and rigorously crafted for durability. They fit perfectly with your product and offer excellent wear resistance and durability
• If you have any questions about the part,please contact us before purchasing it,we'll reply you within 24 hours. I hope you have an enjoyable shopping experience in our store!
